About Kahr® Bearing

Kahr Bearing, Tucson, AZRBC Kahr Bearing operates out of RBC - Sargent Aerospace and Defense’s facility in Tucson, AZ. The Tucson facility houses Kahr Bearing’s sales, design, test, R&D and manufacturing operations teams. Vertical integration allows Kahr the flexibility to design new bearings from the self-lubricating liner on up, and then manufacture, test, and qualify them on-site. The Tucson facility is AS9100D, and ISO accredited. In addition, Sargent Controls and Aerospace/Kahr Bearing operates an FAA Part 145 (S1CR155N) and EASA (EASA.145.4850) Repair Station for the repair and overhaul of a wide variety of self-lubricating bearing system components and specializes in landing gear self-lubricating bearing systems.

Kahr Bearing was one of the first companies to develop and produce self-lubricated bearings. For nearly 70 years, Kahr has built a reputation as an engineered solutions provider, being viewed by many customers as an extension of their own engineering department.

Kahr’s products are used on military and commercial helicopters and aircraft, landing gear, military vehicles/tanks, submarines, satellites and the international space station. From the F-22 fighter aircraft to the V-22 tiltrotor, from submarines and rail applications, to 21st century development programs, Kahr Bearing takes pride in solving our customers’ most difficult design challenges with a drive for new technology backed by a long history of customer focus and support.

Kahr has developed proprietary self-lubricating liner systems that are among the best performing bearing liner systems in the world. Kahr offers over 14 different self-lubricating liner systems including the Kahr-Lon® liner system.

Kahr manufactures a full line of plain bearings including journal bearings (bushings), spherical bearings, rod ends, linkages, and specialty assemblies. Spherical bearings include conventional swaged outer race, load slot entry, Kahr-Kaptor®, and split ball styles. The aerospace grade materials used includes; 440C, 17-4PH, 15-5PH, PH13-8Mo, Stellite®, Inconel®, titanium, and aluminum. Other material options are readily available.

Experts in the Industry
Starting in the concept phase, Kahr partners with our customers to ensure that the end product is a success, and then stands behind the designs with outstanding customer service and product support.Kahr Bearing is proud to be recognized as a 2019 Elite Supplier to the Lockheed Martin Rotary Mission Systems Group, and is the only bearing manufacturer to be qualified and QPL listed to the rigorous standards ofAS81819 high speed oscillation specification which is intended for helicopter main and tail rotor bearing applications. We invite you to contact Kahr Bearing for more information about our full range of self-lubricatedliner technologies.We love a challenge and are up to the task.

Trademark Information
Inconel® is registered trademark of Inco Alloys International Inc., Corp. of Huntington West Virginia
Stellite® is a registered trademark of Kennametal Inc. of Latrobe, Pennsylvania

Please visit the Kahr Bearing website: www.sargentaerospace.com





Products

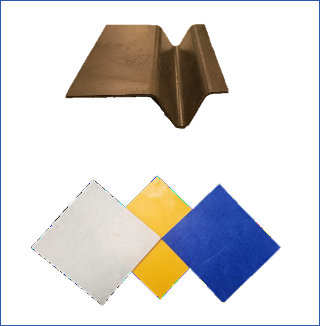

Wear Strips, Kahr Bearing


Wear Strips are composite liners that can be applied to prevent incidental damage to mating components. Wear Strips are sold in standard sheet sizes or custom shapes and are available with peel ply and peel-and-stick backings to allow for ultimate flexibility as each application requires.

Wear Strips are typically applied as follows:

  • Bump Pads
  • Cover Panel Wear Protection
  • Sliding Groove Protection
  • Under varying conditions such as:
    • High contamination
    • Edge Loading
    • Adverse wear surfaces
Wear Strip Benefits Include:
  • Improved wear life of mating joints over metal-to-metal contacts
  • Protecting expensive components from incidental damage, increasing service life
  • Ease of installation both at the OEM and as an aftermarket addition

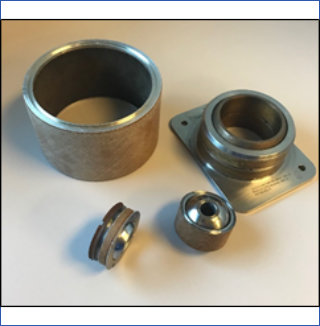

Fretting Buffers, Kahr Bearing


Fretting Buffers are composite liners that, when applied between static components, protect against fretting, galling or galvanic corrosion damage to the mating surfaces.

Fretting Buffers are typically applied on the static interface surfaces of bearings such as:

  • Landing Gear Shock Strut Bearings
  • Steering Collars/Torque Tubes
  • Axle Retainers/Tow Fittings
  • Actuation Bearings
  • Flight Control Bearings
  • Support Bearings
  • Airframe Bearings
Fretting Buffer Benefits Include:
  • Protection from fretting, galling and galvanic corrosion
  • Minimizing or eliminating housing damage during bearing removal

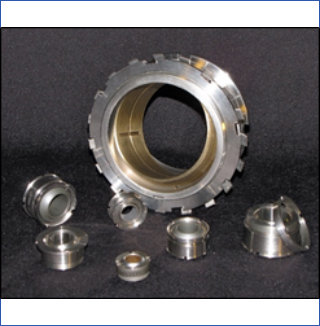

Kaptor® Bearings, Kahr Bearing


Kaptor® Bearings are metal-to-metal or self-lubricating, low-friction bearings incorporating a threaded retainer ring for installation and replacement where accessibility for staking or high thrust loads prevent traditional bearing retention methods.

Kaptor® Bearings are typically installed as follows:

  • Trunnion Bearings
  • Wing Attachment Bearings
  • Spindle Bearings
  • MS Standard Replacement Bearings
Kaptor® Bearing Benefits include:
  • Ease of installation and removal
  • Ability to handle high thrust loads
  • Dimensional equivalence to MS standard bearings allowing direct replacement


RBC® Aerospace X-Guard™ | How To Prevent Fretting, Corrosion & Extend Materials Life Span


Discover RBC® Aerospace X-Guard™ Wear Strips – a revolutionary product designed to combat fretting and corrosion while significantly extending the lifespan of mating components. This flight proven wear strip material can be supplied in a wide range of thicknesses, ranging from .005” to .120” thick, and it can even be color matched to meet your specific application requirements. X-Guard™ Wear Strips can also be tailored to accommodate a wide range of coefficient of friction requirements in the most demanding space, industrial, military, and commercial flight applications. RBC® Aerospace X-Guard™ Wear Strips are an integral part of RBC®’s stress corrosion and fretting protection initiative.

Contact wearstrips@rbcbearings.com today to eliminate fretting and corrosion from your application!
